圖形符號/Picture symbol

特點(diǎn)

*本廠品是以兩臺QBG||系列相同缸徑的氣缸對接組合而成的雙活塞系列氣缸，兩活塞行程可以相同，也可不同�；钊�運(yùn)動方向相反。將一端活塞桿固定，可作為多為氣缸，用途多樣化。

*適于前法蘭式（MF1）和腳架（MS1）安裝形式。

*安裝件尺寸與QGB||系列氣缸相同。

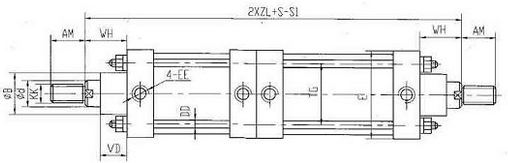

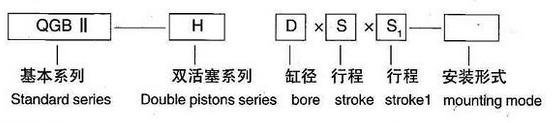

型號說明/Type explanation

Features

This product is composed of two cylinders that have the same bore diameter. The stroke can be the same or not.The piston moves contrarily,if one points of the pistons rod is fixed,it can be used as multidigit cylinders and with divers use.

The form of mount is suitable for MF and MS1.The size of the mount is the same as QGB||

實(shí)例/Example

缸徑?80mm，行程S為200mm，S1為300mm腳架式的雙活塞氣缸QGB||-H80×200×300-MS1 Clevis jointing of the double pistons cylinder { QGB||-H80×200×300-MS1}，its bore is 80mm.its stroke is 200mm and its stroke1 is 300mm.
